CompSci 260P: Week 4
Midterm Preparation
Ryuto Kitagawa
University of California, Irvine
Before We Begin
Hi, my name is Ryuto Kitagawa, and I'm one of your TA's :)
Office Hours: Mondays from 2:00 - 5:00pm at ICS 458F
Next week Thursday is Midterm
Ring Problem

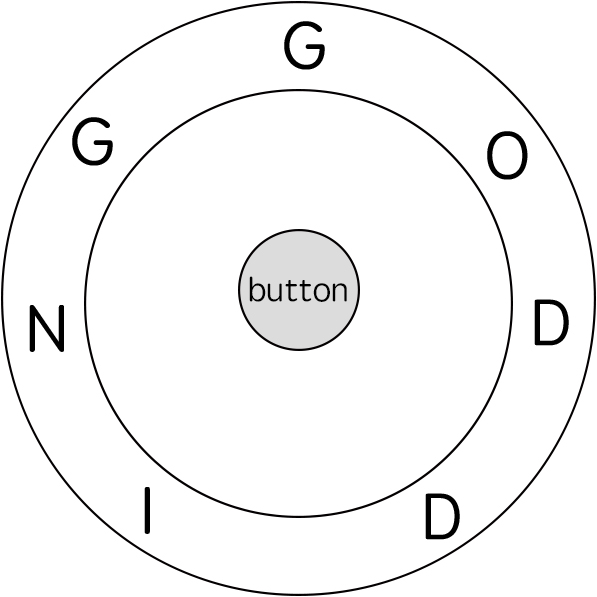

Suppose you are given a ring which looks like the one shown below
Each step, you may turn the ring one letter or press the button
Let
be a word you want to spell
What is the minimum number of steps necessary to spell
?
Ring Problem: Solution
Observation: Can we represent this as a graph?
What would be a natural start to our graph?
Let start of string be the first node in our graph
What would the adjacent nodes be?
The next letter in
!
Note: You could make it the adjacent letters in the ring, which is a valid solution, but less efficient
Should the graph be weighted or unweighted?
Weighted by number of steps it takes to enter that letter
How do we find the answer in this graph?
Use Dijkstra to find the shortest path!
Recursion Fundamentals
Recursion is the core of dynamic programming
Make the problem smaller in some way
What that means depends on the problem!
Smaller problem is input to your algorithm
Assume output here is correct!
These two key points should shape what your recursive algorithm looks like
Don't forget the base case!
Recursion Fundamentals
Dynamic Programming Fundamentals
Dynamic Programming is the natural extension of a recursive algorithm
Do not redo computations!
Find repetitive computations and stop them
Find the order of dependencies to linearize the algorithm
This takes time to understand!
Company Party
Suppose you are organizing a company party

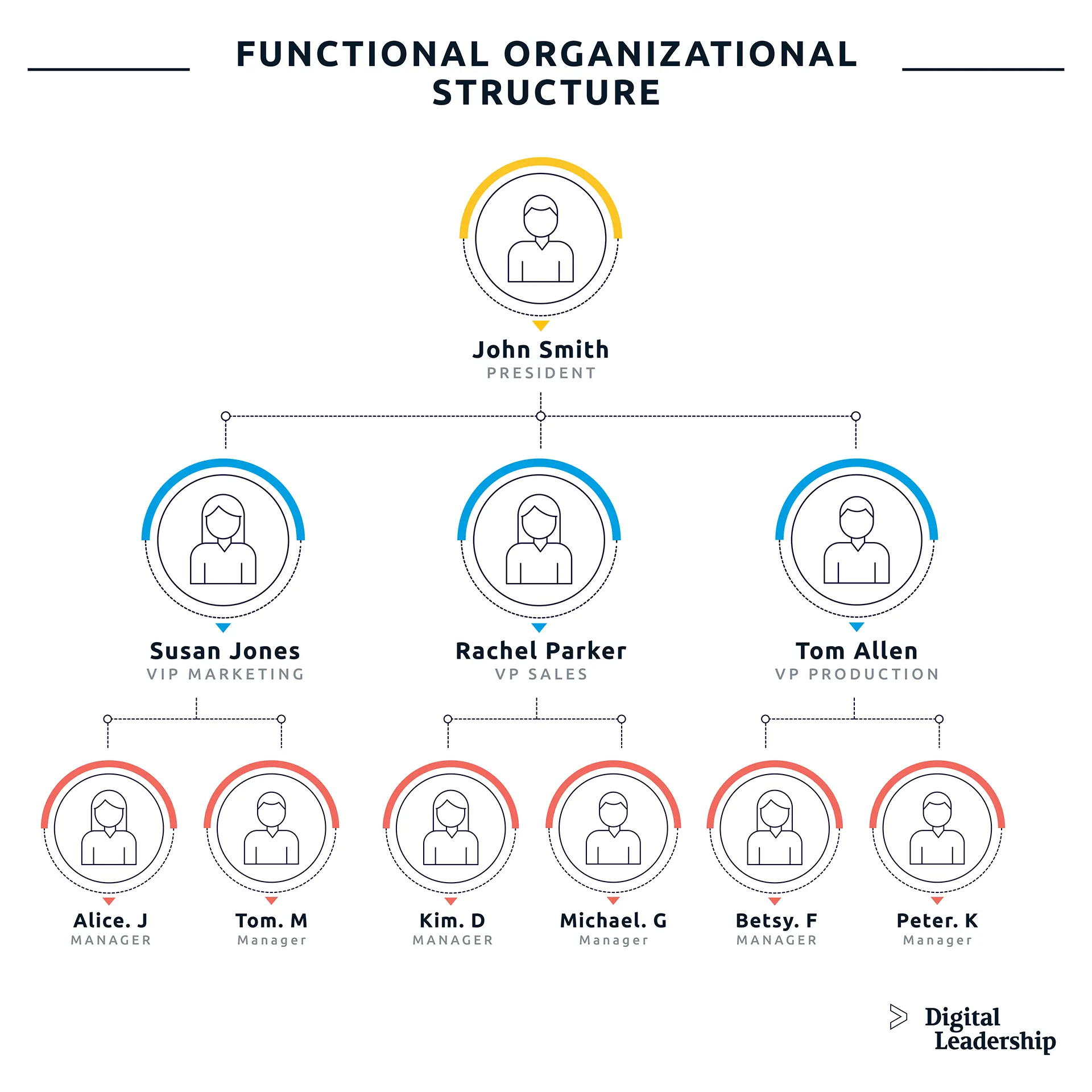

The corporation has a hierarchy tree
An employee has some subordinates, who have some subordinates, etc.
Creates a hierarchy tree
If an employee is invited, their immediate supervisor cannot be invited
Each employee
has a value
for how much value they bring to the party
Note: Assume the people organizing this party are jerks
Produce an algorithm which maximizes the value of the party
Company Party
Company Party: Recursive Solution
Consider the tree containing the hierarchy of all employees
Start with the root:
Can you make a decision on this employee?
Invite, or don't invite!
What about the root's children?
If we invited the root, then we can
not
invite them!
Pass valid subtrees into the recursive function!
Company Party: Iterative Solution
How do we linearize the algorithm?
Solve the base case first!
Then solve the next dependent parts
Compute the function starting with the leaves
Solve all nodes at the lowest height
Then solve nodes one level above
Keep going all the way to the top!
